NON-STOCKED ITEM - MANUFACTURED UPON ORDER - ETA 6-8 WEEKS

PRODUCT DETAILS

This is a great dual motor setup for vehicles up to 4500 pounds, or a high performance setup in lighter vehicles. The single motor case makes installation easier than other dual motor setups, and twin Curtis 1239e-8521 controllers are included. This is a ready to go system that with higher voltage controllers and motor windings, and it hits 165 HP (123 kW) and a whopping 190 lb-ft (258 Nm)!

Its right for you if:

You have a lightweight car that you want to convert to electric not only for zero-emissions but also want to see gains in performance. This drop in kit is perfect for your lightweight sportscar.

The tech you get:

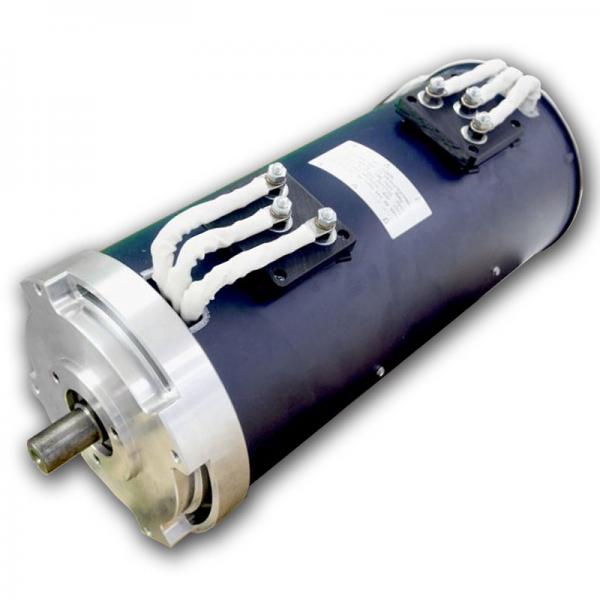

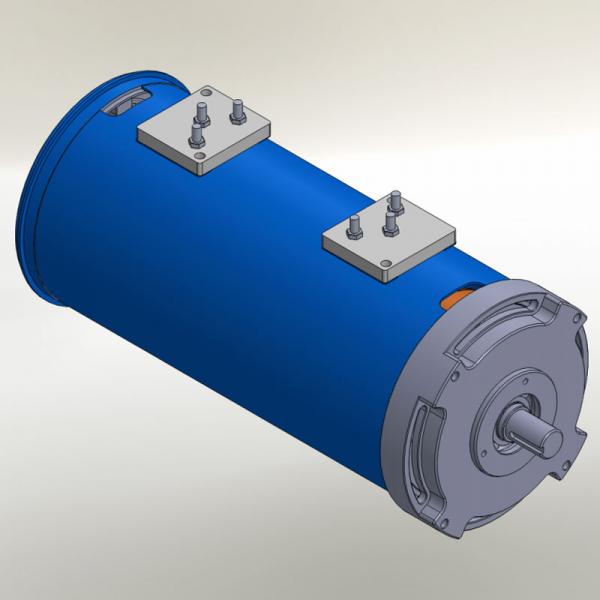

• HPEVS AC35x2 Dual Motor

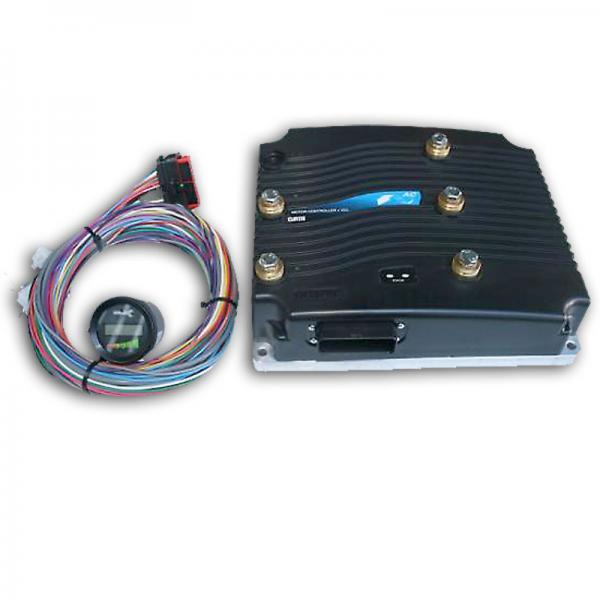

• 2x Curtis 1239e-8521 Controllers
• 2x 35 Pin Connector and Wire Harnesses
• 2x Gigavac GV200-MA Contactors
• 2x 12 Volt HV Relays
• 2x Precharge Resistors
• 2x Curtis 840 Dash Gauges
• 2x SPST Menu Buttons
• 2x SPST Mode Switches

The final word:

 A practical and safe power plant for any size project.

Specifications

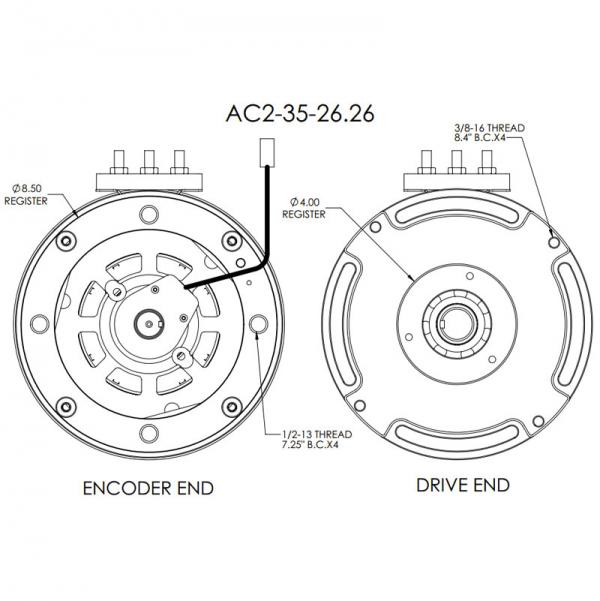

• Motor Face: B-Face
• Motor Diameter: 8.9 Inches
• Motor Case Length: 19.8 Inches
• Motor Shaft Length End to End: 24.1 Inches
• Motor Type: AC Induction
• Brushes: No
• Interpoles: No
• Weight: 68 Kg
• Max Voltage Input: 171
• Terminal Stud Size: 3/8 Inch
• Integrated Sensors: Encoder

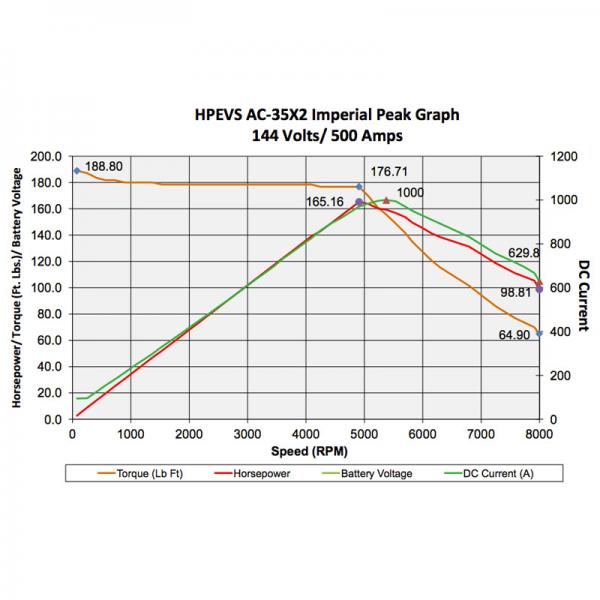

• Rated Torque: 190 Lb Ft
• Rated Power: 165 HP
• Continuos RPM: 5,000
• Max RPM: 10,000
• RPM Sensor: No
• Drive End Shaft: 1 1/8 Inch With 1/4 Inch Keyway
• Acc/Commutator End Shaft: Optional 7/8 Inch With 3/16 Keyway
• Timing: N/A
• Max Efficiency: 88%
• Thermal Cooling: Internal Fan
• Max Temperature: 180 Degrees Celsius (356 Degrees Fahrenheit)
• Matching Dual Controllers Included In Price: Curtis Controller 1230-8501 (quantity two)
